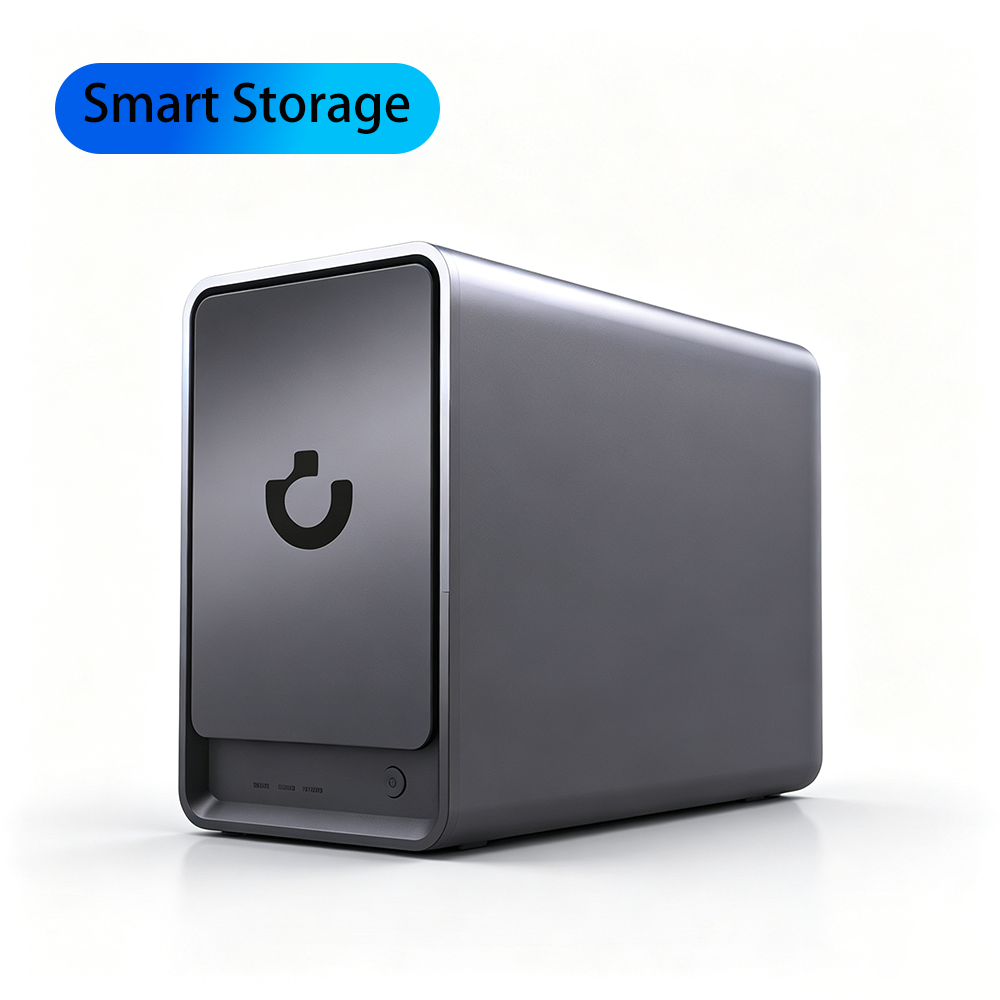

S2 Smart NAS: Compact 2-Bay Storage Appliance for Smart Security & Small Business OEM
PRODUCT PLATFORM

S2 Smart NAS: Compact 2-Bay Storage Appliance for Smart Security & Small Business OEM

Dual-bay efficiency · OEM firmware and logo branding · Edge surveillance and smart office

RK35681 TOPS NPU1 × 2.5GbE60 TB Hardware OEMFirmware OEM
$195 Retail reference price (USD)

Volume & OEM pricing on request. Excluding shipping and duties; subject to change.

Sample fee is credited to your first bulk order. Shipping is calculated at checkout; import duties are billed separately.

Application

Built for your market

The volume SKU for consumer and prosumer brand owners. The S2 is engineered as a retail-ready private cloud appliance — the form factor, packaging and app experience are already built for shelf and marketplace channels across the US and Europe.

  • Retail and marketplace private-cloud appliance for consumer brands
  • Home and family multi-device backup with AI photo organisation
  • ISP / telco bundle hardware for local-storage value-added services
  • Media centre and download-to-device hub for smart-home ecosystems

S2 in one paragraph: The woCyber S2 is a two-bay OEM/ODM NAS platform: Rockchip RK3568, 1 TOPS NPU, 4 GB DDR4, 32 GB eMMC, two SATA bays with a 60 TB raw capacity ceiling and one 2.5GbE RJ45 port. It is supplied as a private-label base for brand owners, distributors and security integrators; OEM scope and MOQ are confirmed in writing at quotation. Quote a Config ID →

Platform capabilities

Two-bay storage: Two SATA bays with a 60 TB raw capacity ceiling for local file pooling, backup and edge recording workflows.

On-device AI: An RK3568 platform with a 1 TOPS NPU and local storage keeps inference and data on the appliance.

2.5GbE networking: One 2.5GbE RJ45 port for local file sharing and multi-client access.

OEM/ODM scope: Private-label branding, packaging and firmware/UI tailoring for distributors, integrators and brands; scope and MOQ are confirmed in writing at quotation.

Deployment boundaries: The S2 fits small offices, smart security setups and B2B private-label programmes. It is not a rack-mounted data-centre array; higher bay counts or multi-port 10GbE belong to other platform classes.

S2 platform questions, answered

The S2 is the mainstream two-bay tier of the platform family, and it is usually the first model a distributor or a service provider lists.

What does the S2 base configuration include?

An RK3568 processor with a 1 TOPS NPU for on-device inference, 32 GB eMMC boot storage, two drive bays with a 60 TB capacity ceiling, one 2.5GbE port, and an ABS shell over a rigid steel mid-frame that damps drive vibration. The chassis measures 105 x 228.5 x 170 mm, which keeps it inside shelf-height retail packaging. Every item is reconfigurable on an OEM basis.

Why do channel buyers usually open with the two-bay tier?

Because a two-bay unit covers the household, small-office and service-provider bundle case at a price that leaves room for channel margin, while the four-bay tier is reserved for project bids. Reconfiguration is confirmed per project in writing, so a buyer can open with the S2 alone and add models once sell-through data arrives. The published single-unit reference price is $195 excluding shipping and duties, and volume or OEM pricing is quoted on request. See published platform pricing and the OEM/ODM program.

What is the main difference between woCyber AI NAS and traditional NAS?

A traditional NAS mainly stores and shares files across the network. woCyber AI NAS adds an on-device compute unit that runs inference locally, so face and object recognition, local document summarization, and small model question answering run on the appliance without a per-use cloud API fee.

Does woCybersec support OEM/ODM customization for private cloud hardware?

Yes. woCyber builds private-cloud and AI NAS hardware as OEM/ODM: industrial design, PCB and interface customization, firmware and UI, and branded chassis and packaging. Minimum order quantity is confirmed per project in writing.

Key features

Five standard capabilities

Local AI Processing
01

Local AI Processing

Face, scene and event models run on the device. AI features keep working without an internet connection and without uploading data.

Private Data Storage
02

Private Data Storage

Storage is local and account-isolated. No mandatory cloud dependency, no third-party access to customer data.

Remote Access
03

Remote Access

Encrypted remote access through mobile app, desktop client and web portal — relayed or peer-to-peer, under your branded service.

Multi-user Management
04

Multi-user Management

Independent accounts with isolated storage spaces and per-user permissions — one appliance serves a household or a team.

Smart Surveillance Integration
05

Smart Surveillance Integration

ONVIF / PoE IP camera support with AI event classification on the appliance — surveillance and storage in one system.

Key technology

What is inside the platform

S2 · key technologyRK3568
RK3568 with 1 TOPS NPUQuad-core 2.0 GHz Cortex-A55 with an integrated neural processing unit running local face, scene and object models — AI features keep working when the device is offline.
2.5GbE networkingA single 2.5-gigabit port delivers roughly 2.5× the throughput of standard gigabit consumer NAS, materially shortening the first-time backup of large photo and video libraries.
Dual-bay with steel mid-frameABS outer shell over a rigid metal mid-frame keeps the unit compact (105 × 228.5 × 170 mm) while holding drive vibration and acoustic levels down for living-room placement.
Multi-strategy backup engineScheduled, versioned and continuous backup policies cover phones, computers and cameras from a single console — the everyday value proposition your customers buy the device for.
Product gallery

Application scenes

Smart homeSecurityOfficeBusiness backupContent creation
Target industries

Who sells this platform

Consumer electronics private-label brands
E-commerce & marketplace sellers
Smart-home ecosystem brands
Telecom / ISP value-added bundles
Retail chains & buying groups
Photography and content-creator brands

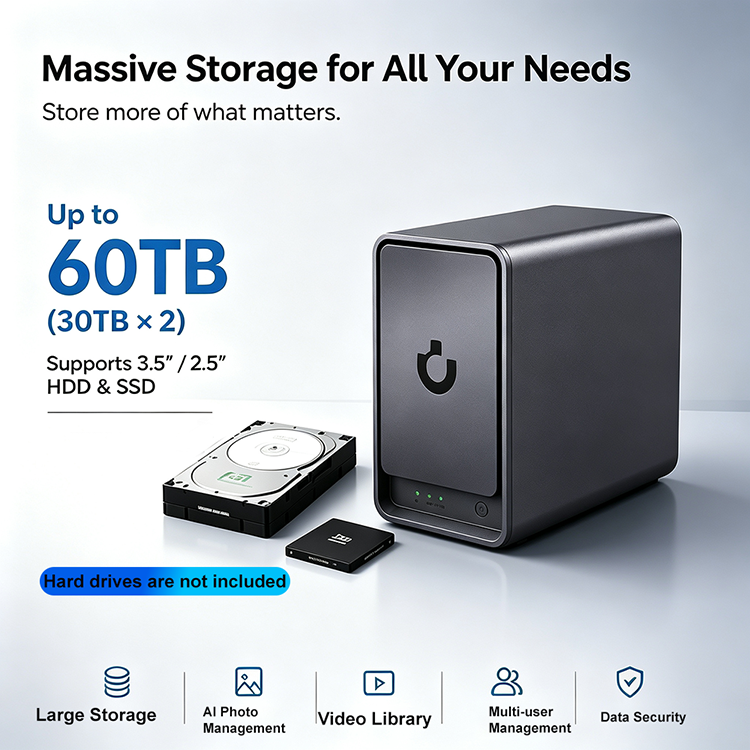

S2 Smart NAS: Compact 2-Bay Storage Appliance for Smart Security & Small Business OEM application

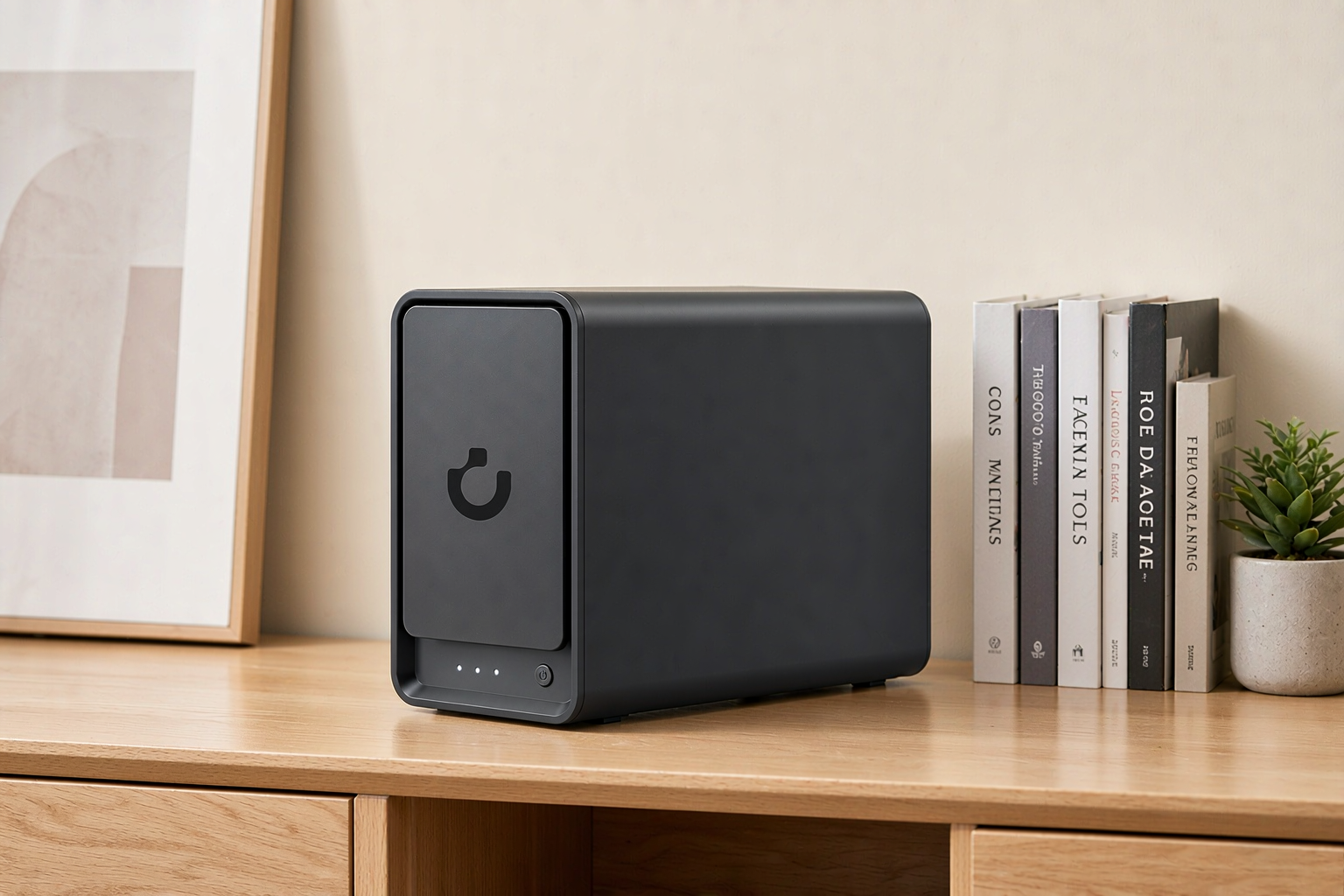

S2 Smart NAS: Compact 2-Bay Storage Appliance for Smart Security & Small Business OEM application
S2 Smart NAS: Compact 2-Bay Storage Appliance for Smart Security & Small Business OEM application

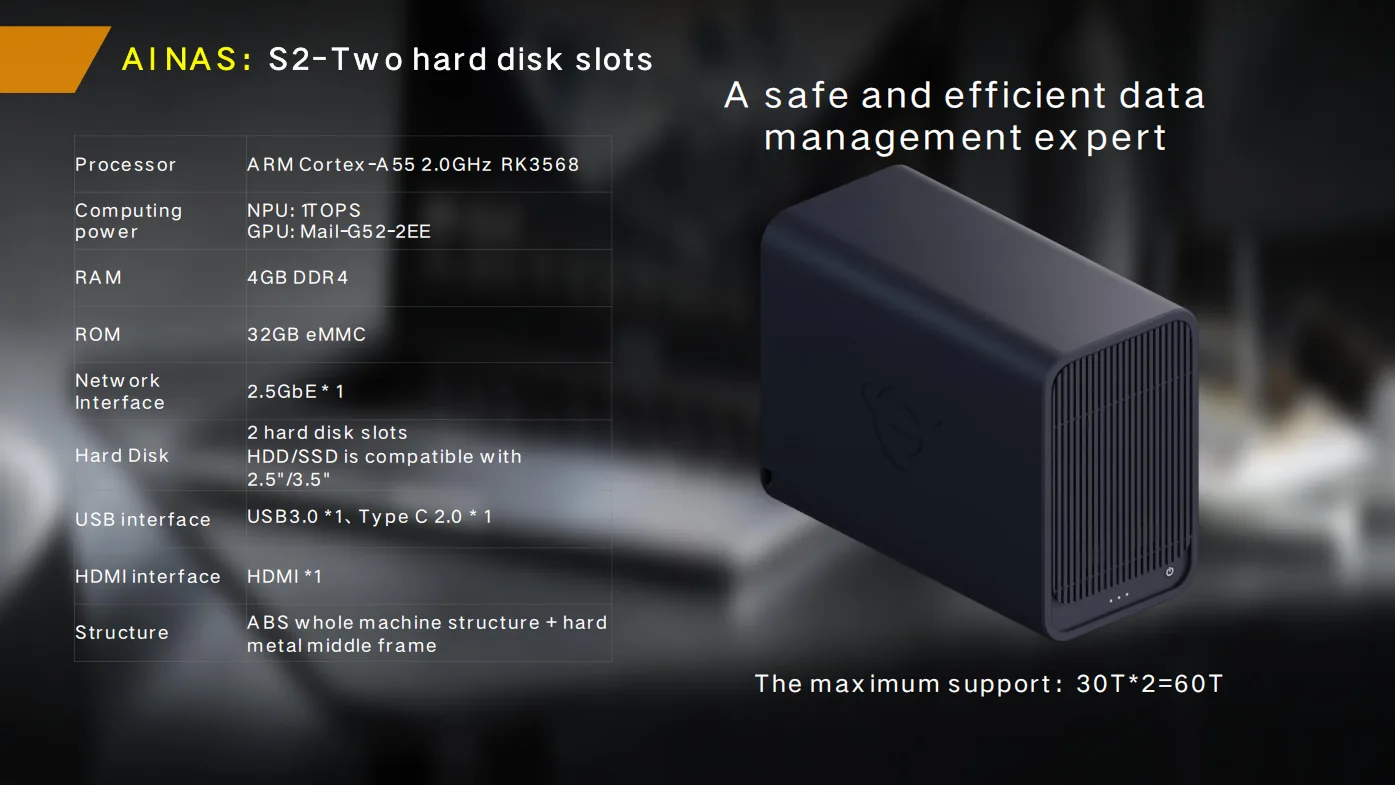

Specifications

Full specification

Base configuration. All items below are reconfigurable on an OEM basis.

S2 · specificationwoCyber
ProcessorRockchip RK3568 — quad-core Cortex-A55 up to 2.0 GHz
AI acceleration1 TOPS NPU · Mali-G52-2EE GPU
Memory4 GB DDR4
Boot storage32 GB eMMC

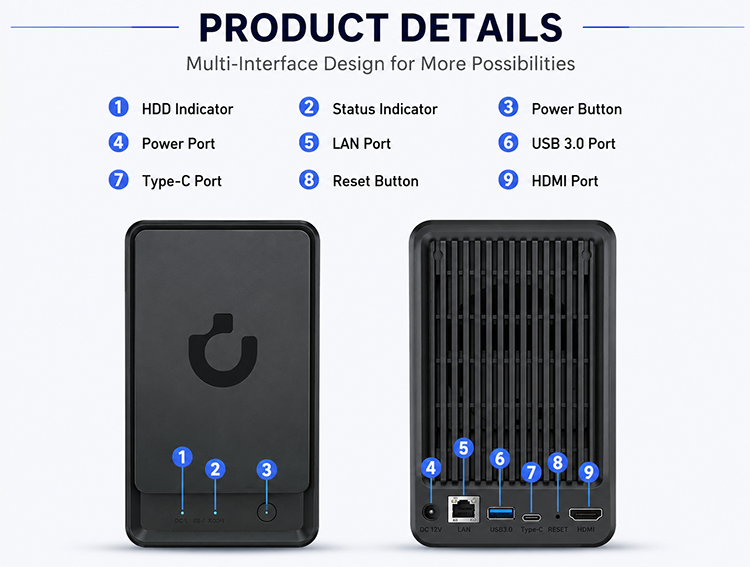

Drive bays2 × 2.5" / 3.5" SATA HDD or SSD, tool-free trays
Maximum capacity60 TB raw (30 TB × 2)
Network1 × 2.5GbE RJ45
ExpansionUSB 3.0 ×1, USB Type-C 2.0 ×1
Display outHDMI ×1
Dimensions105 × 228.5 × 170 mm
ChassisABS body with rigid metal mid-frame
SecurityEncrypted transmission, per-account isolation, automatic versioned backup

Certifications: Documentation per model — request the pack  ·  Cases

OEM options

Customization scope for this platform

Logo customizationHousing designFirmware modificationAPP interfacePackaging designStorage configuration
S2 · OEM options matrixOEM / ODM
Industrial designColour ways, top-surface finish and LED treatment; custom ID from 5,000 units
BrandingSilkscreen or laser logo, branded app icon and product naming, custom splash screen
Hardware configurationeMMC 32 / 64 GB, 1GbE or 2.5GbE variants, single-bay derivative from the same tooling
FirmwareBranded setup wizard, custom default folder structure, preloaded app catalogue, localised OTA
ClientsWhite-label iOS / Android app, desktop agent and web portal
PackagingRetail box, branded inserts, localised quick-start guide, accessory kit
ComplianceCE / UKCA / FCC / RoHS / REACH / WEEE, plus regional adaptor variants
OEM / ODM programs

Ways to build S2 into your own product line

Request the full specification and OEM options

Tell us your market and volume — we reply with the datasheet and a configuration proposal.
