RK3566 · 1 bay · 30 TB · fanless-class footprint
Volume & OEM pricing on request — MOQ 100 units. Excluding shipping and duties; subject to change.
A small-form-factor single-bay platform that doubles as a lightweight Linux terminal. It is the SKU we use for customers who need private storage plus a screen output — digital signage, kiosk, classroom and light edge deployments.
Face, scene and event models run on the device. AI features keep working without an internet connection and without uploading data.
Storage is local and account-isolated. No mandatory cloud dependency, no third-party access to customer data.
Encrypted remote access through mobile app, desktop client and web portal — relayed or peer-to-peer, under your branded service.
Independent accounts with isolated storage spaces and per-user permissions — one appliance serves a household or a team.
ONVIF / PoE IP camera support with AI event classification on the appliance — surveillance and storage in one system.
| 4K@60 Hz hardware output | Mali-G52 graphics with 4096 × 2160 output turns the unit into an HD media player or signage controller — one device covering storage and display duty. |
|---|---|
| Dual USB with OTG | USB 3.0 plus USB 2.0 with OTG support allows direct card-reader and portable-drive ingest — useful in field and photography workflows. |
| Small-footprint chassis | A compact ABS enclosure fits shelf, desk and enclosure-mount installations where a multi-bay unit is physically impossible. |
| Low power, continuous duty | Designed for 24/7 unattended operation at low power draw, which is what signage and edge installations actually require. |

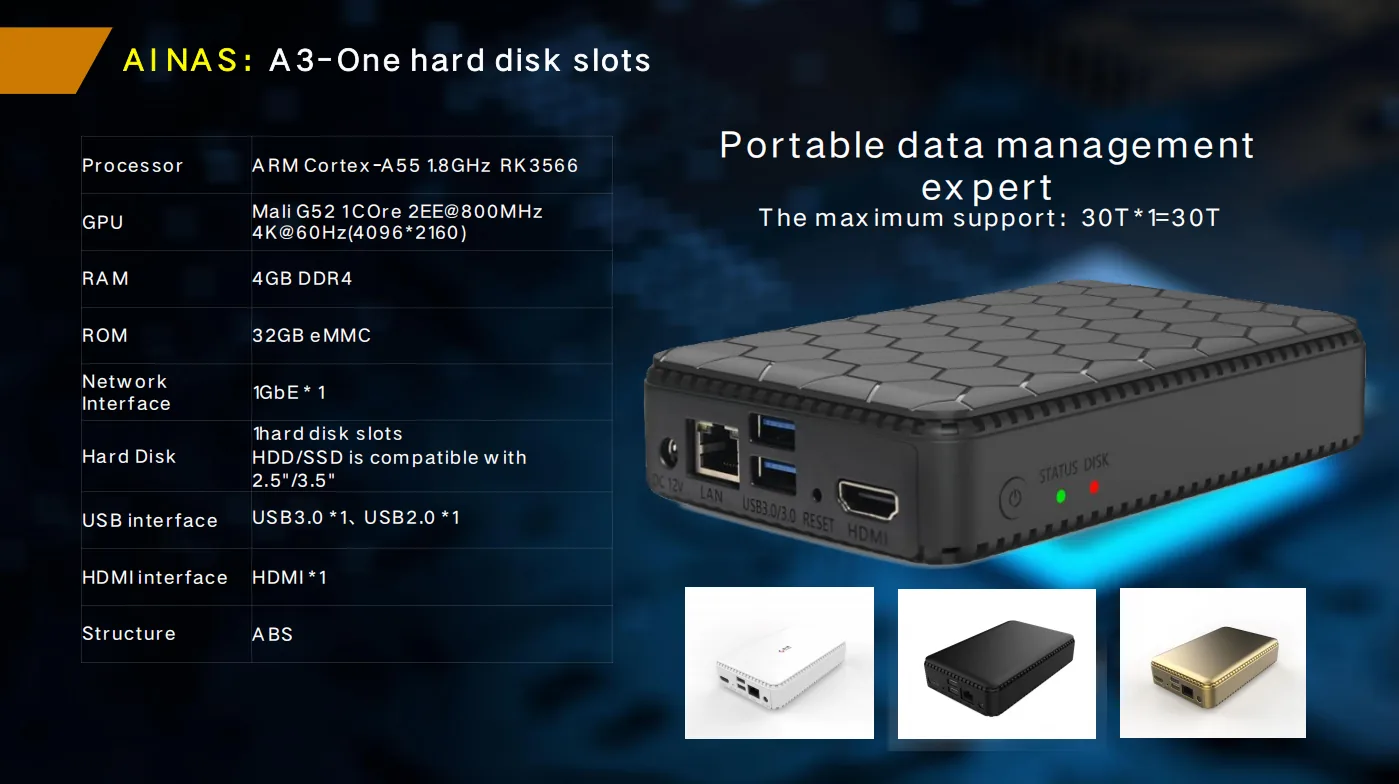

Base configuration. All items below are reconfigurable on an OEM basis.
| Processor | Rockchip RK3566 — quad-core up to 1.8 GHz |
|---|---|
| Graphics | Mali-G52 1-core 2EE @ 800 MHz, 4K@60 Hz (4096 × 2160) |
| Memory | 4 GB DDR4 |
| Boot storage | 32 GB eMMC |

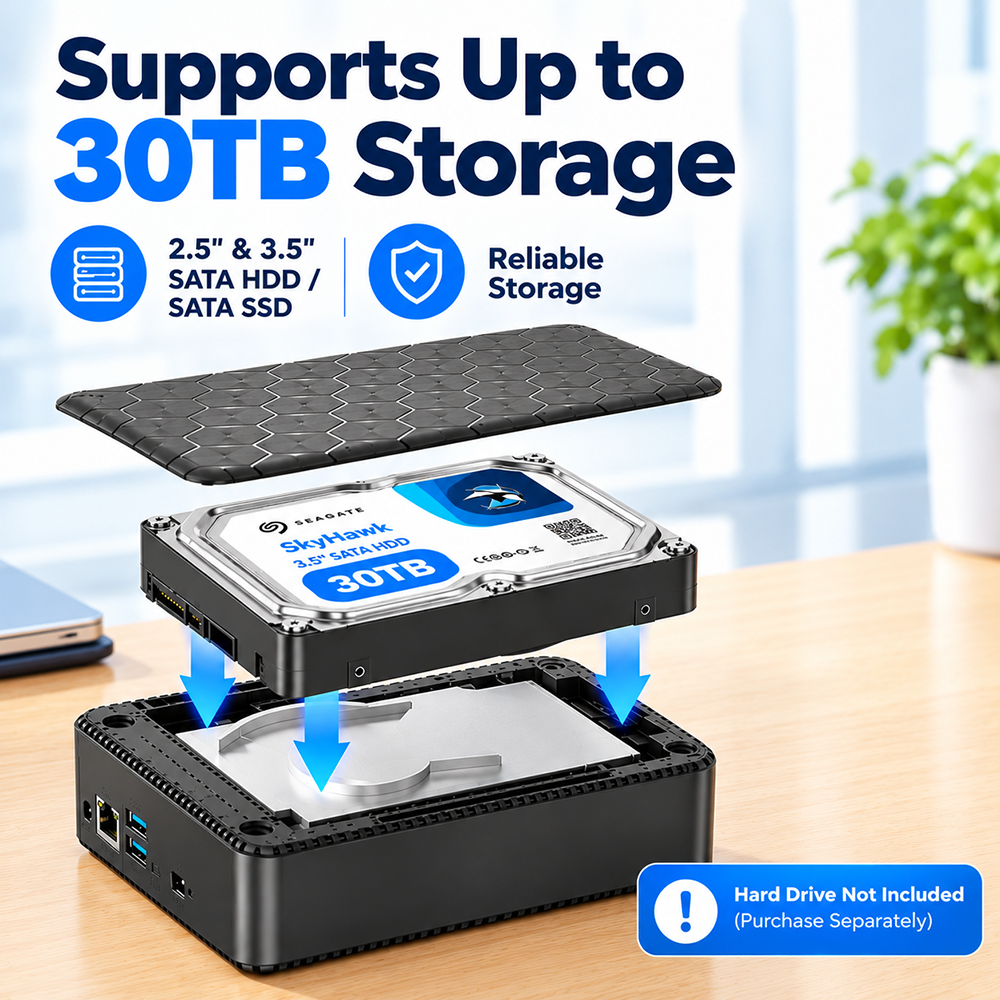

| Drive bays | 1 × 2.5" / 3.5" SATA HDD or SSD |
| Maximum capacity | 30 TB raw (30 TB × 1) |
| Network | 1 × GbE RJ45 |
| Expansion | USB 3.0 ×1, USB 2.0 ×1 |
| Display out | HDMI ×1 |

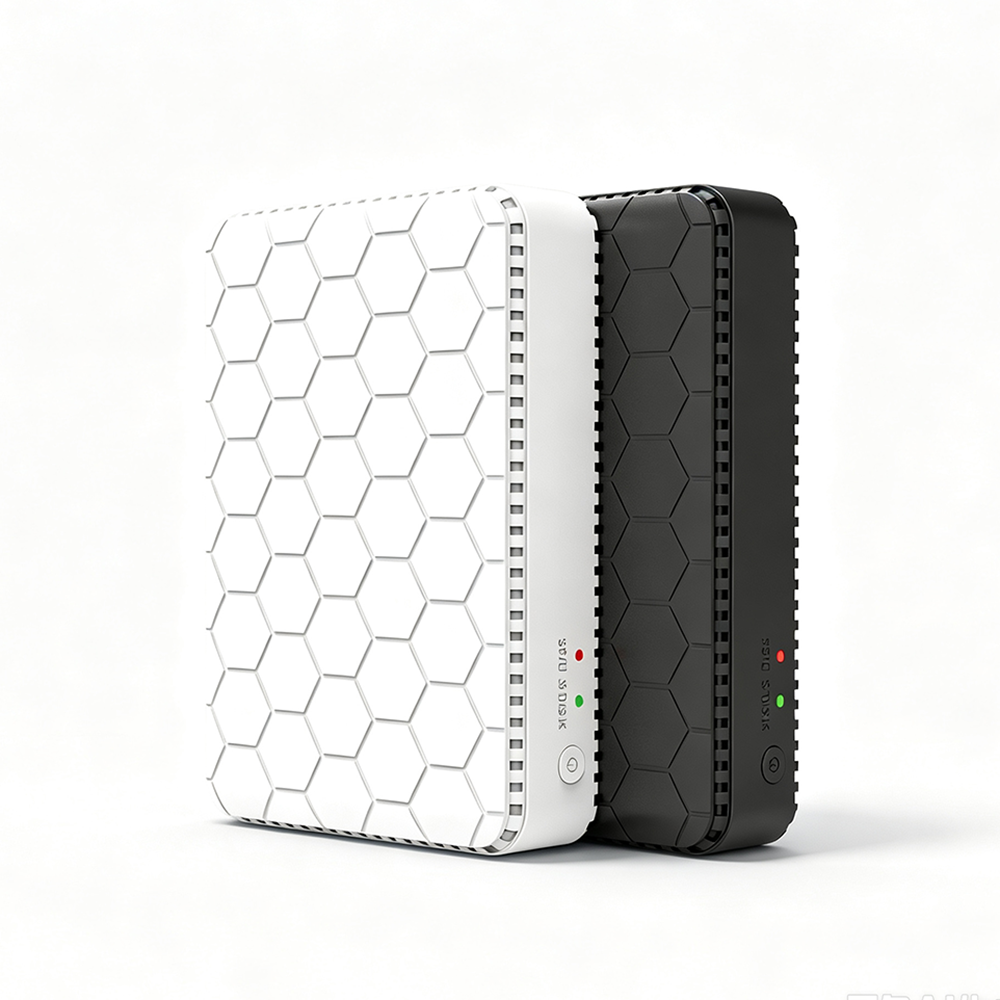

| Chassis | ABS body, black or white |
| Duty cycle | Continuous 24/7 operation |
| Setup | Three-step onboarding: install drive, scan to bind, power on |
| Industrial design | Black and white standard, custom colour and bezel treatment by project |
|---|---|
| Branding | Logo silkscreen or laser engraving; branded boot animation |
| Hardware configuration | eMMC 32 / 64 GB, RAM variants, optional dual-GbE and extended-temperature builds |
| Firmware | Branded UI, kiosk / signage auto-launch mode, custom default applications |
| Clients | White-label app and desktop client; signage control integration |
| Packaging | Retail carton or bulk-pack for integrator deployments |
| Compliance | CE / UKCA / FCC / RoHS / REACH / WEEE support |
Tell us your market and volume — we reply with the datasheet and a configuration proposal.
